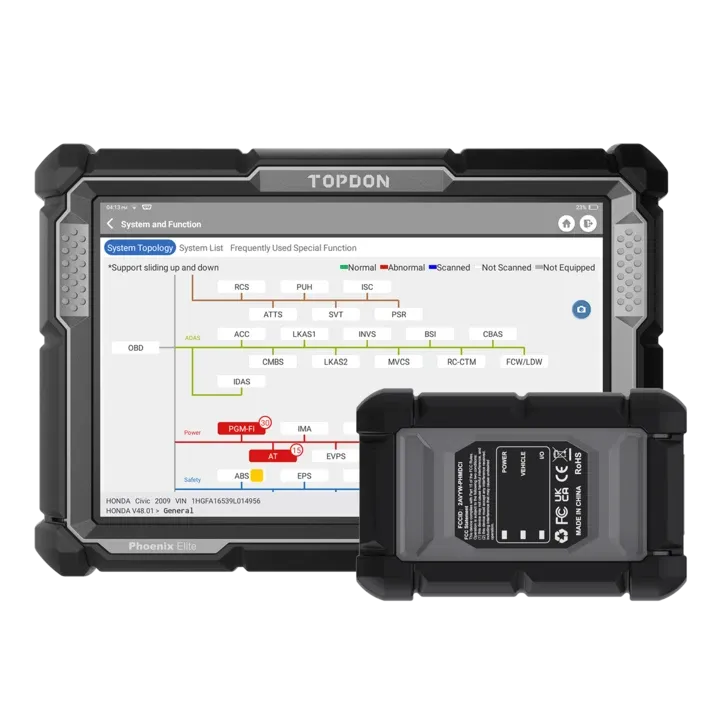

Topdon Phoenix Elite

TOPDON Phoenix Elite Car Diagnostic tool...

The phoenix elite is a professional grade diagnostic scanner that offers oe level capabilities.

Includes 2 years of updates.

Official UK stock. Official TOPDON UK Product Support - Perfect for the Professional Market.

The Phoenix Elite is a professional-grade car diagnostic scanner that offers OE-level capabilities. With a 10.1" LCD screen, 4-Core 2.0 GHz Processor, and Android 10 operating system, this tool provides fast and precise diagnosing capabilities. Its topology feature lets technicians have a clear picture of the automobile's sensor systems and quickly find communication issues or identify trouble codes. The Elite offers special maintenance functions and online coding for various makes. This tool can perform active tests, coding, initializations, memory resets, and much more.

Phoenix Elite Features

CONNECT TO THE NEWEST VEHICLES

• Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

ALL DATA ON ONE SCREEN

• Topology mapping displays related vehicle systems and CAN network.
• Diagnose communication issues instantly.
• Color-coded mapping of each module’s communication status.
• Offer active tests, special functions, coding, initialization, and memory resets.

GUIDED FUNCTIONS FOR VAG VEHICLES

• Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles.

VEHICLE AUTO VIN AND AUTODETECT

• The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes.

PRE-SCAN AND POST-SCAN REPORTING

• The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval.
• When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle's clean bill of health.

EXPAND YOUR CAPABILITIES WITH ADAS CALIBRATION

• Stepping beyond diagnostics, the Phoenix Elite introduces ADAS capabilities to auto shops. Download the ADAS upgrades and pair with a Phoenix ADAS system to turn your Phoenix Elite into a calibration station, creating a new revenue stream for auto shops.

Phoenix Elite Specifications

• Display: LCD 10.1” touchscreen, 1280*800
• CPU: 4-Core Processor, 2.0 GHz, Android 10.0
• RAM: 4G
• ROM 64G
• Battery: 12000 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃（-4℉~140℉）
• Working Temperature: 0℃~50℃（32℉~122℉）
• Dimension: 278*191*48 mm（10.94*7.52*1.89"）
• Package size: 468*320*143 mm(18.43*12.60*5.63")
• Multilingual Support: 24 Languages
  English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Phoenix VCI:

• Working Temperature: -10℃ to 50℃（14℉ to 122℉）
• Operating Voltage: 9 to 18 V
• Working Current: ≦ 150 mA
• Dimension: 127 x 82 x 36mm（5 x 3.22 x 1.42”）
• New protocol supported: CANFD

Phoenix Elite Packing List

• 1* Phoenix Elite
• 1* Phoenix MDCI (VCI Dongle)
• 1* OBDI Adapter BOX Transfer Line
• 1* OBDII Extension Cable
• 1* Cigarette Lighter Cable
• 1* Type-C to USB Cable
• 1* Battery Clamps/Cable Set
• 1* Power Adaptor
• 1* User Manual
• 1* Password Envelope
• 10* Non-16pin Adaptor Cable Kit
• 4* Fuse (φ5*20mm)
• 2* Fuse (φ6*30mm)
• 1* BMW F-Chassis Programming Cable

Phoenix Elite Media

Full Walkthrough of The Topdon Phoenix Elite
